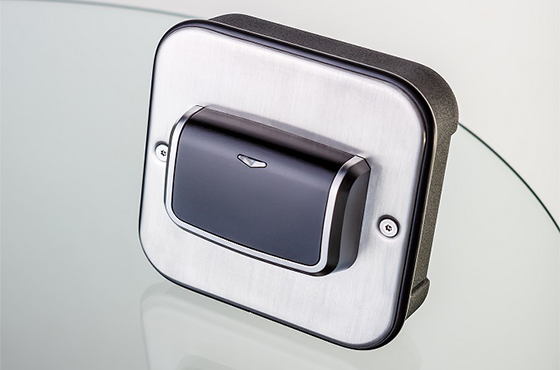

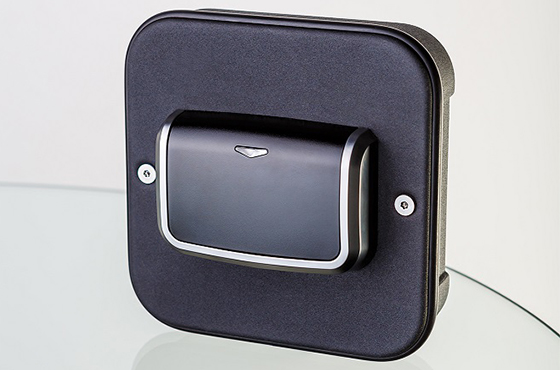

Onity Trillium Advance RFID Wall Reader

Article code: Trillium Advance RFID DirectKey™
  • Compatible with Onity RFID electronic locking systems
  • Supports MIFARE Classic®, MIFARE Plus®, MIFARE Ultralight®, and MIFARE Ultralight C cards
  • Reading technology: contactless RFID (ISO14443A, NFC)

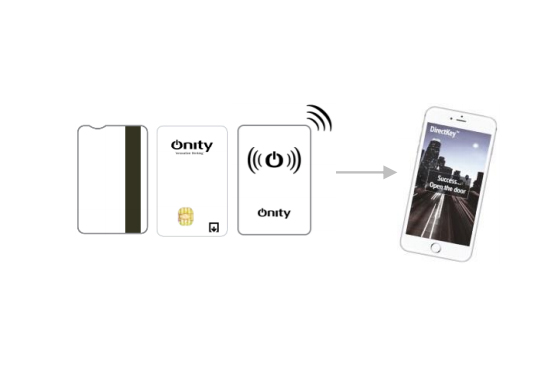

  • DirectKey-ready: Optional on-board DirectKey module provides secure wireless communication of credentials from a user’s smartphone to a locking device via Bluetooth® Smart communications
  • ADA compliant. ADA opening timer

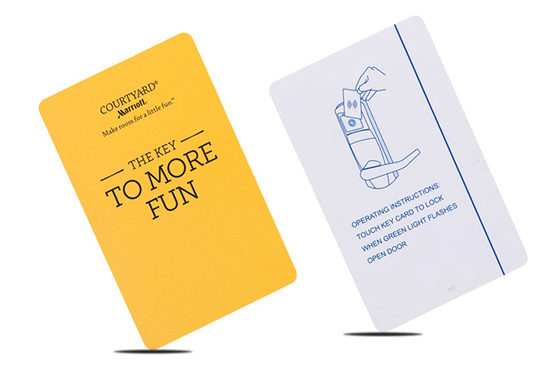

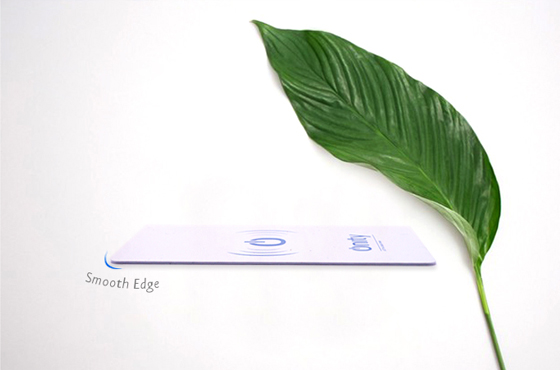

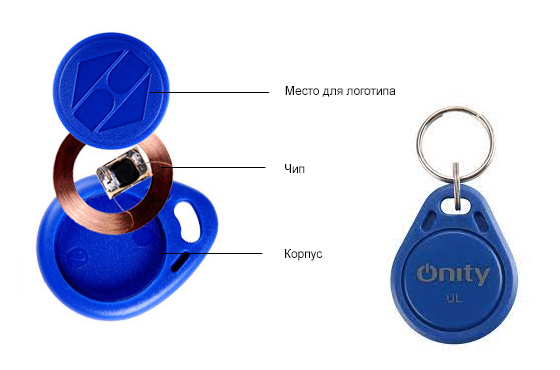

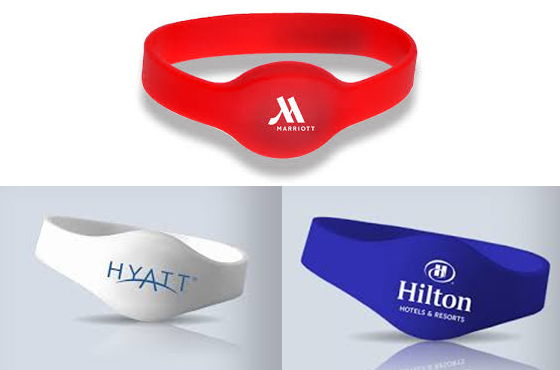

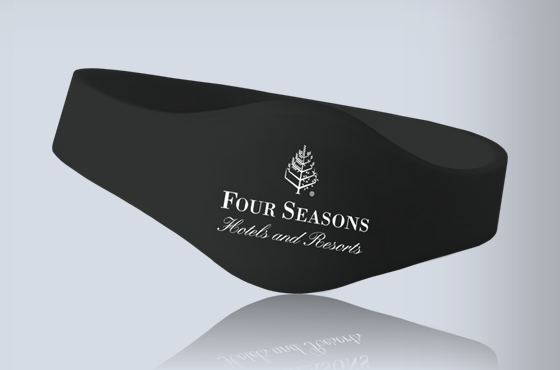

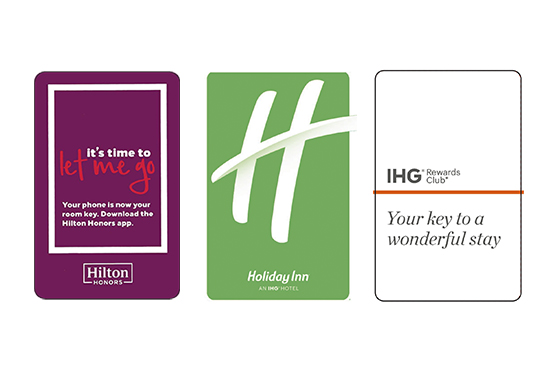

  • Multiple opening devices available: keycards, wristbands, keychains, etc.
  • NXP CRYPTO1 or AES-128 card encryption
  • LED indicates access granted or access denied status

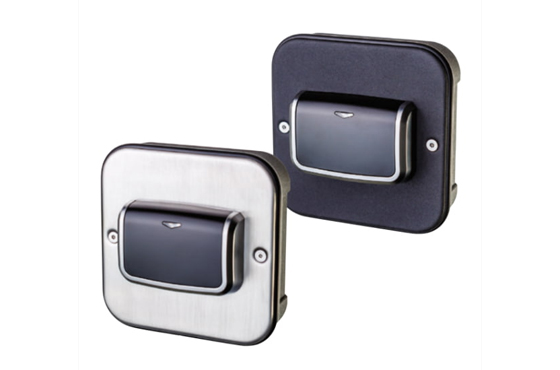

  • Available with stainless steel or black faceplates
  • Requirement: on-line or off-line wall reader control unit

Benefits

  • Allows both on-line and off-line configurations
  • Flexible installation: surface mount or flush mount
  • Fits in U.S. double-gang or European 100 x 100 box
  • Tamper switch generates audit log if the wall reader is removed from the wall
Specifications
  • MIFARE Classic®, MIFARE Plus®, MIFARE Ultralight®, MIFARE Ultralight® С
  • Operating temperature range: -40ºC to 75ºC
  • Requirement: on-line or off-line wall reader control unit
